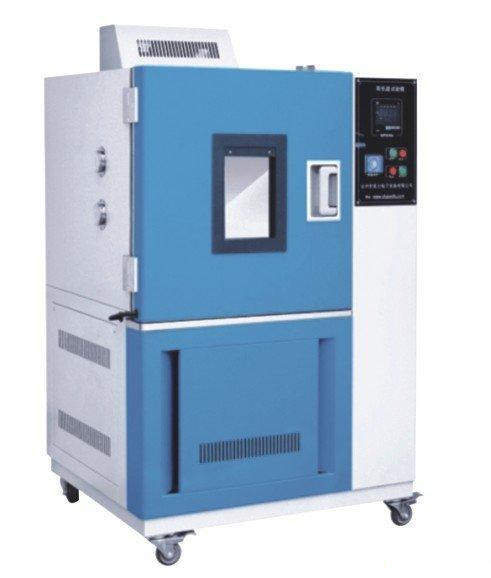

High Precision Lab Environmental Programmable Temperature Humidity Test Chambers
The temperature and humidity test chamber can accurately simulate the complex natural environment of low temperature, high temperature, high humidity, low temperature and low humidity, which is suitable for the product detection of plastics, electronics, food, clothing, vehicles, metals, chemicals, building materials and other industries.
Technical parameter:
| Performance | Temperature range | A:-20℃~150℃ B:-40℃~150℃ C:-60℃~150℃ D:-70℃~150℃ E:-70℃~180℃ Customized temperature is available |
| Humidity range | 20~98%R.H Customized humidity is available |
| Fluctuation / uniformity | ±1.5℃/±2℃ |
| Humidity deviation | ±3%R.H |
| Heating rate | About 3.0℃/min |
| Cooling rate | About 0.7~1.0℃/min |
| Control system | Controller | "Temi" brand programming temperature instrument, HD real color LCD touch screen |
| Accuracy range | Setting accuracy: temperature 0.1 ℃, humidity 1% R.H, Indication accuracy: temperature 0.1 ℃, humidity 1% R.H |
| Temperature and humidity sensor | Platinum resistor PT100Ω/MV |
| Heating system | Fully independent system, Ni Cr alloy electric heating heater |
| Humidification system | External isolation type, all stainless steel shallow surface evaporation humidifier |
| Dehumidification system | Adopt the dew point temperature laminar contact dehumidification method of evaporator coil |
| Water supply system | Humidification water supply adopts automatic control, and can recover residual water, save water and reduce consumption |
| Refrigeration system | French "Tecumseh" totally enclosed air-cooled single-stage or cascade compressor refrigeration mode |
| Circulation system | Motors with low noise and temperature resistance - multi blade centrifugal fans
|
More Details:
Usage:
The temperature and humidity test chamber can accurately simulate the complex natural environment of low temperature, high
temperature, high humidity, low temperature and low humidity, which is suitable for the product detection of plastics, electronics,
food, clothing, vehicles, metals, chemicals, building materials and other industries.
PACKAGE&DELIVERY:
1. Standard exported package: Internal anticollision protection, external export wooden box packaging.
2. Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
4. 15-20days after confirming order,detail delivery date should be decided according to production season and order quantity.
BOTO ADVANTAGE

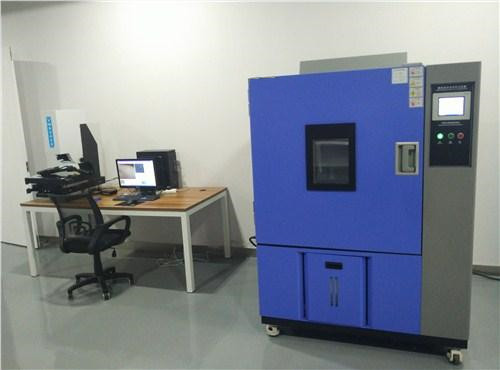

Customers photos
OUR TEAM
FAQ:
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
