1000KN 2000kN 3000kN Concrete Cube Compression Testing Machine Electric Control Compression Tester Compress Machine

  • 1
  • 2
  • 3

Brand Name : BOTO

Model Number : BT-Y-2000

Certification : CE ISO

Place of Origin : China

MOQ : 1set

Price : Negotiated

Payment Terms : L/C, T/T,

Supply Ability : 100 Set/Sets per Month

Delivery Time : 5-25 days

Packaging Details : wooden case

Power : Hydraulic

Product name : Compression Tester Compress Machine

Power supply : AC 3 Phase 380V/220v 60/50Hz

Measuring range : 4%-100% FS

Piston stroke : 50mm

Test space adjusting way : electric ball screw adjusting

Display : Digital Display

Control : Manual control loading process

Contact Now

1000kn 2000kN/3000kN YES-D Concrete Cube Compression Testing Machine/Electric Control Compression Tester

1. Application

This compression testing machine mainly used for concrete rupture strength testing, cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.

Feature:The test data is not only could displayed on LCD directly, but also could be displayed on computer screen.

1000KN 2000kN 3000kN Concrete Cube Compression Testing Machine Electric Control Compression Tester Compress Machine

1000KN 2000kN 3000kN Concrete Cube Compression Testing Machine Electric Control Compression Tester Compress Machine

Main Specifications

Model BT-Y-1000 BT-Y-2000 BT-Y-3000
Max. load 1000KN /100Ton 2000kN/200Ton 3000kN/300Ton
Machine Class 1 class
Range of test force 4% ~100%FS
Testing space adjust method Manual adjust
Indicating value accuracy ±1%
Piston stroke 30mm 50
Diameter of Piston 250mm 300
Distance between platens 320mm 400mm
Upper platen size 220*250mm (Can be customized) 300x300mm
Display LCD screen display
Power supply 0.75KW, AC380V/50Hz/3 phase(can be customized)
Size 880*480*1400 mm 1000x500x1450mm
Weight 600kg 1000Kg
Power 380V/220V / 0.75KW

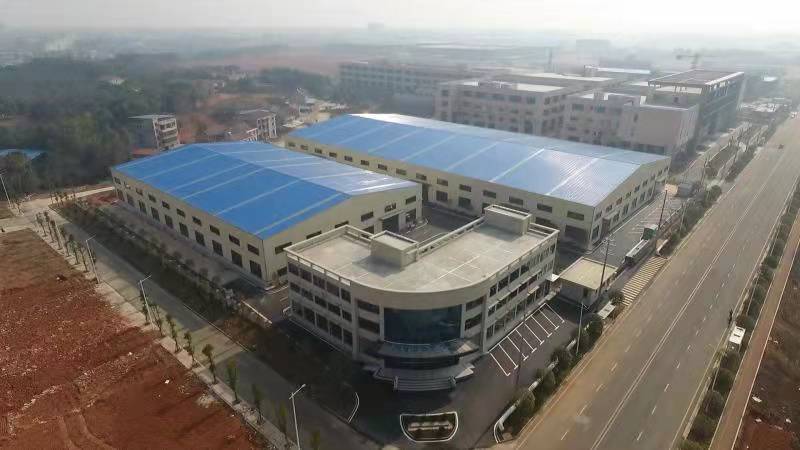

Company information
