Temperature Humidity Chamber Programmable High Temperature Chamber GB/T5170.5-2008 GB/T10586-2006
A temperature humidity chamber is a testing device used to simulate various environmental conditions such as temperature, humidity, and other factors like light, pressure, and vibration. The chamber is used to test the performance and reliability of products, materials, and components under different environmental conditions. Temperature humidity chambers are commonly used in industries such as electronics, aerospace, automotive, and medical to test products and materials for their durability, reliability, and functionality. The chamber is designed to maintain a stable and controlled environment, allowing the user to replicate real-world conditions and observe how the product or material performs under different conditions. The temperature and humidity can be adjusted and programmed to simulate different environmental conditions, and sensors are used to monitor and record the data.
The following actions are prohibited:
*Testing or storage of flammable, explosive, volatile materials
*Testing or storage of corrosive substance samples
*Testing or storage of biological samples
*Testing or storage of samples of strong electromagnetic emission sources
*Testing or storage of radioactive material samples
*Testing or storage of highly toxic substances
*Testing or storage of specimens that may cause flammable, explosive, volatile, highly toxic, corrosive and radioactive materials during testing or storage
Usage:
1. Testing the effects of temperature and humidity on electronic components and devices
2. Testing the durability of materials and products under extreme environmental conditions
3. Testing the performance of pharmaceuticals and medical devices under various environmental conditions
4. Testing the growth and development of plants and organisms under controlled environmental conditions
5. Testing the impact of temperature and humidity on food and beverage products
6. Testing the effects of temperature and humidity on textiles and clothing materials
7. Testing the performance of vehicles and machinery under extreme environmental conditions. Overall, temperature humidity chambers are versatile tools that can be used in a variety of industries and applications to test and study the impact of environmental conditions on various materials and products.
Model:
| Model | B-T-120 | B-T-225 | B-T-504 | B-T-1000 |
| (A~D) | (A~D) | (A~D) | (A~D) |
| Inside size WxHxD (cm) | 45x60x45 | 60x75x50 | 70x90x80 | 100x100x100 |
| Humidity deviation | ± 2.5% RH |
| Temperature range | -70 degree ~ +100(150) degree |
| (A:-40 degree B:-50 degree C:-60 degree D:-70 degree) |
| Humidity range | 20%~98%R.H. |
| Temperature fluctuations | ± 0.5 ℃ |
| Temperature deviation | ± 2.0 ℃ |
| Heating / cooling time | About 3.0/min(heat), about 1.0/min(cool) |
| Inside material | SUS#304Stainless steel plate |
| Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, |
| Program capacity | (touch type)
1. Program: 10 groups maximum
2. Number of segments: up to 120 segments
3. Number of cycles: maximum infinite loop |
| Protection | 1. Fault alarming, showing the reason of fault and how to solve the problem
2. Power failure protection function
3. Upper and lower temperature protection function
4. Calendar timing function (automatic start and automatic stop operation)
5. Self-diagnosis function |
| Power | 220VAC±10% 50/60Hz & 380VAC±10% 50/60Hz |
Company Information
Shanghai BOTO GROUP LTD is a high technology company specializing in integrated incubation systems. We are conveniently located in Shanghai City.
With 20+ years of incubator R&D experience from our technical team, we have developed several series of the advanced integrated hatchery system.
Also we have gained the Authorized Poultry Industry R&D Center and been awarded the High-tech Enterprise by Chinese government. Also, both our company and products are approved by ISO9001, ISO14001, ISO45001, ISO50001
Packaging/shipping:
Each set protected with film, then put into Strong wooden case with English operation manual.
FAQ
Customer: What about the transportation?
Answer: It depends on your requirement. We can delivery by air to your airport, or by sea to your seaport, and we can also delivery to your office address by express courier, and we also accept to co-operate with your ship agent or forwarder.
Customer: What about the after-sale service?
Answer: Guarantee period is 12 months, after the warranty, we also provide life-long paid repair or service. Response within 24 hours for any problems. Overseas training, installation is available.
Customer: What about the delivery date?
Answer: Usually we offer 15workdays after order confirmed and payment received, and we can also accept urgent order for prompt shipment.
Our Services
All machine quality guarantee for one year and lift-time technical support for customer. On line response to customers technical problems.and life-time technical support for customer.
|
|

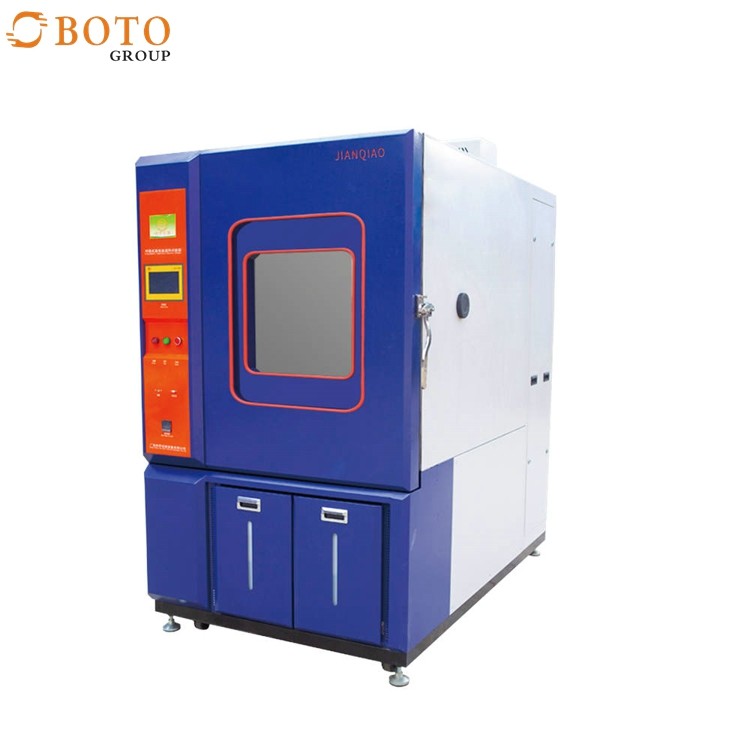

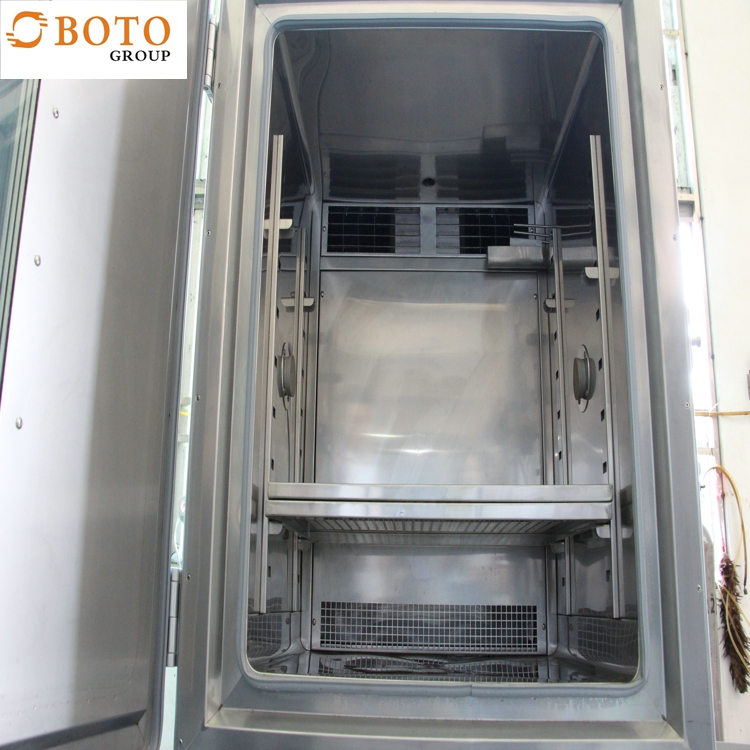

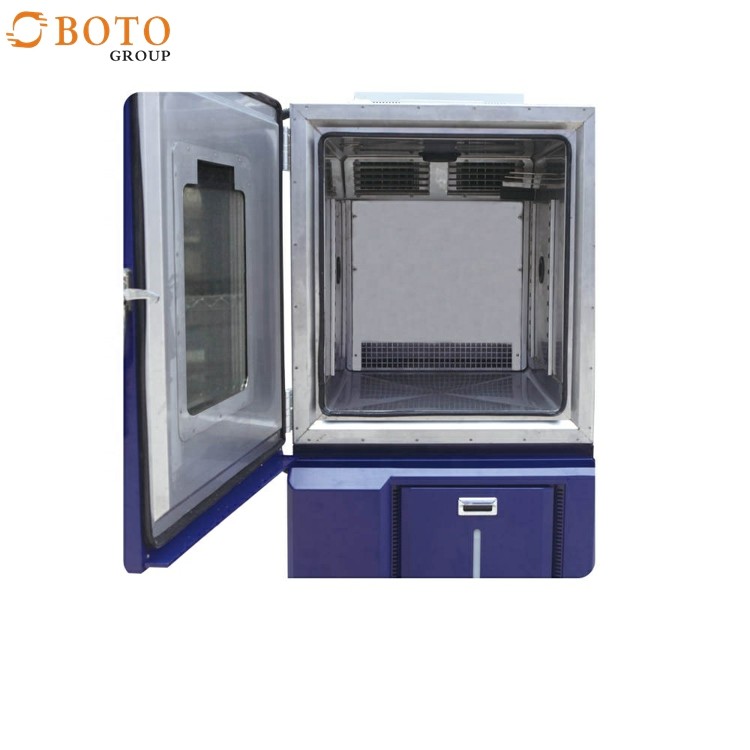

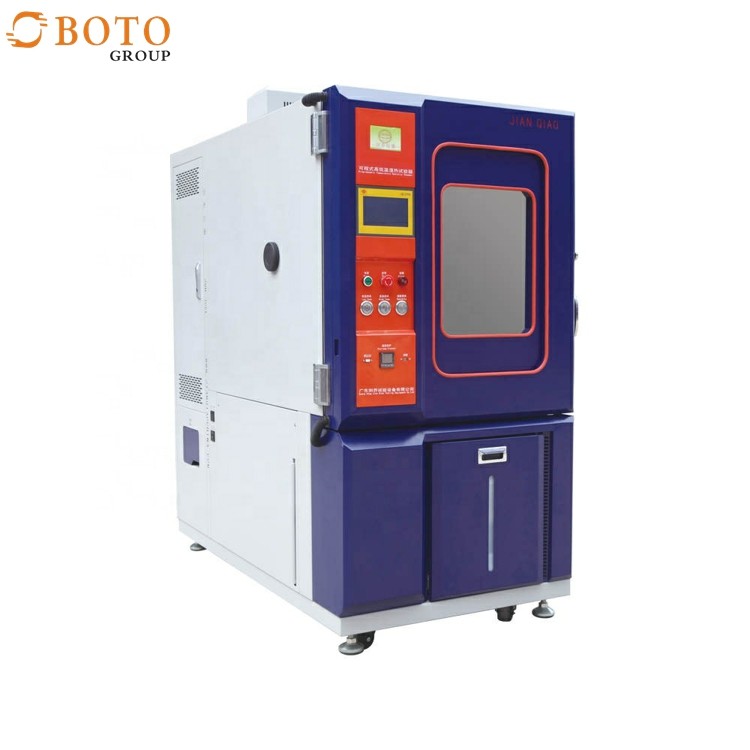

Temperature Humidity Chamber Programmable High Temperature Chamber GB/T5170.5-2008 GB/T10586-2006 Images
|
