GB10592-89-2001 Three Box-Type Hot And Cold Impact Chamber Climatic Chamber Manufacturer
Description:
Three-box cold and hot impact test chamber is designed and manufactured according to user requirements, suitable for aviation, aerospace, military, ship, electrical, electronic and other products and parts of the high and low temperature impact test and high temperature or low temperature environment storage and test.
It is applied to pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products etc; The test Data result which is very useful for scientific research, product development and quality control sector to help them produce high quality anlysis report.
Temperature Humidity Test Equipment is used to test the material characteristic for wire type, skin type, plastic, rubber, cloth, Equiped with a special ventilation regulator for maintain the fresh air inside when heating. This testing machine design with sophisticated air-displacement adjustment device and a digital voltage meter, current meter, watt-hours, the timer can be used to measure the air replacement rate. Horizontal circulatory air supply system and both sides of airflow regulator to ensure the internal temperature uniformity and stability.
Thermal Shock Testing chamber features:
1.It is divided into three zones: high temperature zone, low temperature zone, and testing zone. The test sample is in static
mode.
2.Using touch-control graph control as operation interface, easy to operate.
3.Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.
4.For high temperature shock or low temperature shock, max. time is up to 999H, and max. circulation cycles are 9999 times.
5.The system can be used for automatic Circulation Shock or manual selective shock.
6.Adopt binary cooling system, with quick cooling effect. Cooling method is water cooling.
7.Can entering normal temperature. RS-232 and RS-485 communication.
Test standards
1.GB/T2423.1-1989
2.GB/T2423.2-1989
3.GB/T2423.22-1989
4.GJB150.5-86
5.GJB360.7-87
6.GJB367.2-87 405
7.SJ/T10187-91Y73
8.SJ/T10186-91Y73
9.IEC68-2-14
10.GB/T 2424.13-2002
11.GB/T 2423.22-2002
12.QC/T17-92
13.EIA 364-32
product description:
| Model | B-TCT-401 | B-TCT-402 | B-TCT-403) | B-TCT-501 | B-TCT-502 | B-TCT-503 | B-TCT-601 | B-TCT-602 | B-TCT-603 |
| Internal (CM) | 40x35x35 | 50x40x40 | 60x50x50 | 40x35x35 | 50x40x40 | 60x50x50 | 40x35x35 | 40x50x40 | 60x50x50 |
| External Dim(CM) | 143x210x170 | 154x212x170 | 166x220x180 | 143x210x170 | 156x210x170 | 166x220x180 | 143x210x170 | 156x210x190 | 166x220x180 |
| Low Temp Range | -10℃--60℃ | -10℃~-70℃ | -10℃--80℃ |
| Test Temp Rang | -40℃-150℃ | -55℃~150℃ | -65℃~150℃ |
| HighTemp |
+80℃-200 ℃ lvarious specifications applicablel |
| Recovery time | 3 to 5 minutes |
| Temp Fluctudtiont | ±2 ℃(various specifications applicable) |
| Interior | SUS#304Stainless steel plate |
| Exterior | Coating or SUS#304Stainless steel plate |
| Power Source | AV:380V 50/60Hz |
| Power(KW) | 16KW | 19KW | 19KW | 19KW | 20.5KW | 22KW | 19KW | 26KW | 33KW |
Our Company:
Packing/Shipping:
1. Are you Manufacturer?Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional and biggest Manufacturer like Environmental Chambers, Industrial Ovens, Universal Tensile Testers, UV Aging Test Chambers, Industrial Muffle Furnaces, Paper Packing Testers, Plastic Rubber Testers, Adhesive testers and other testing Equipment.. in China .Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.
Moreover, If your machine doesn’t work, you can send us an E-mail or call us we will try our best to find the problem through our conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What’s the delivery term?
For our standard machine which means normal machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines) If you are in urgent need, we will making a special arrangement for you.
|
|

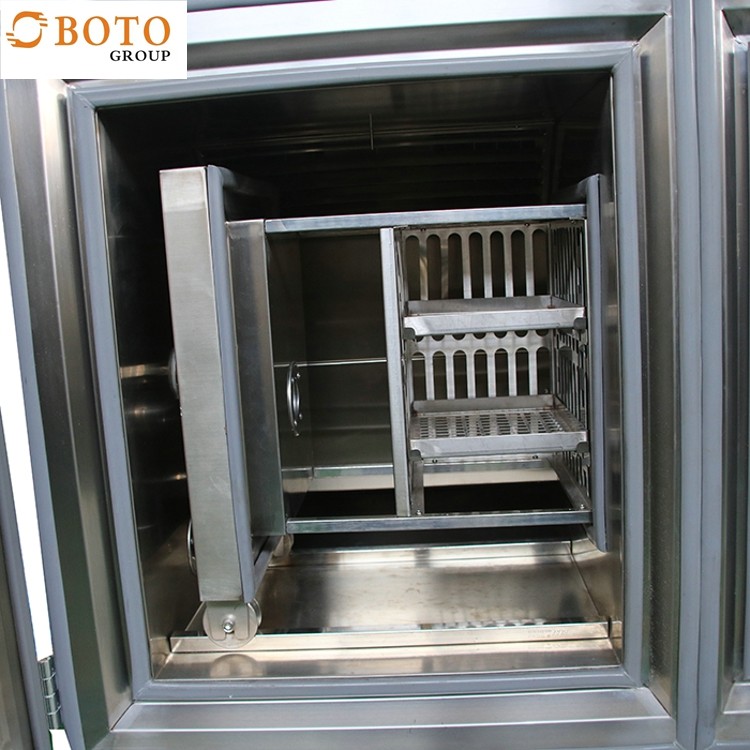

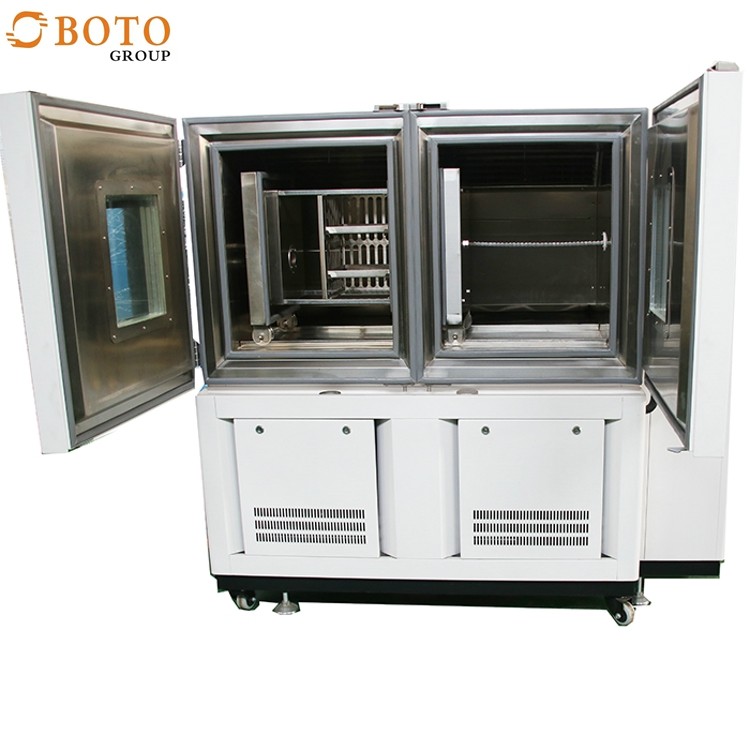

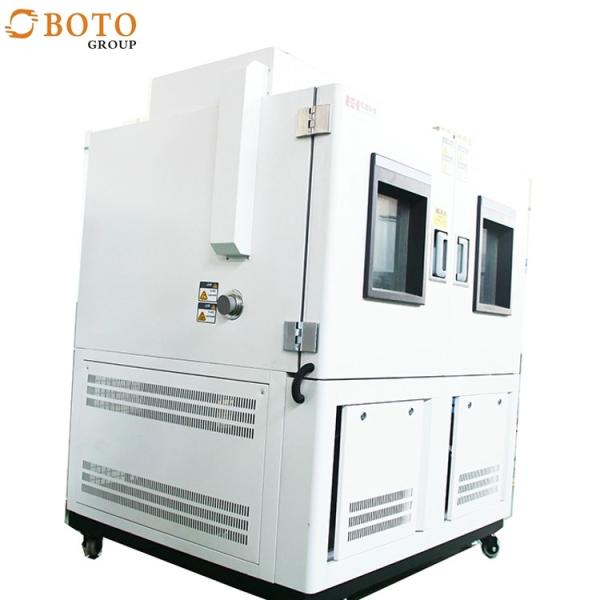

GB10592-89-2001 Three Box-Type Hot And Cold Impact Chamber Climatic Chamber Manufacturer Images
|
