Manufacturer Environmental Test Chambers VG95218-2 UV Aging Test Chamber Climatic Chamber
The UV-accelerated aging test chamber uses UVA-340 fluorescent UV light as a light source to simulate the damage caused by sunlight, rain and dew. The UV weatherproof box uses a fluorescent UV lamp to simulate the effect of sunlight, and uses condensed moisture to simulate dew. The material to be tested is placed in a cyclical program of alternating light and moisture at a certain temperature to accelerate the weathering test of the material to obtain the weather resistance of the material. The UV box can reproduce the hazards of outdoor months or years in days or weeks. Types of hazards include: fading, discoloration, loss of light, powdering, cracking, turbidity, air bubbles, embrittlement, strength, decay, and oxidation. This machine contains a shower device.
Applicable Standard:ASTM G 153, ASTM G 154, ASTM D 4329, ASTM D 4799,ASTM D 4587, SAE,J2020, ISO 4892 All current UV Aging Test standards.
This product uses a fluorescent ultraviolet lamp that can best simulate the UV spectrum of the sun, and combines temperature control, humidity supply and other devices to simulate the sun that causes discoloration, brightness, and intensity reduction; cracking, peeling, chalking, oxidation, etc. (UV section) Factors such as high temperature, high humidity, condensation, dark period, etc. At the same time, the single light resistance or single moisture resistance of the material is weakened or invalid through the synergy between ultraviolet light and moisture, which is widely used for weather resistance of the material For performance evaluation, the equipment has the characteristics of providing excellent sunlight UV simulation, low maintenance cost, easy to use, automatic operation cycle of the lighting controller of the equipment, high degree of automation, good lighting stability, and high reproducibility of test results.
It has the following performance characteristics:
The heating mode is the inner tank heating, fast heating and uniform temperature distribution
The drainage system uses reflux type and U-type sedimentation device to drain water
The distance between the sample surface and the UV lamp plane is 50 mm and parallel

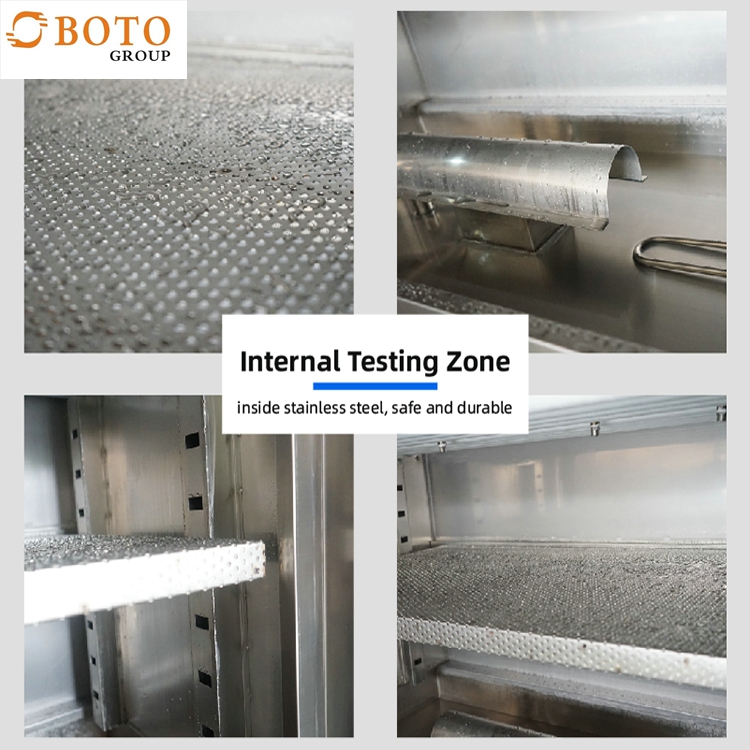

The actual studio consists of test samples and supports to form the inner wall of the box, trapezoidal
Automatic water refill of tank water level
The lid is bidirectional clamshell type, easy to open and close
High quality fixed PU movable wheel is used at the bottom of the test chamber
product description:
Model | B-ZW |
| Internal Dim(DxWxH) | 50x75 |
| External Dim(DxWxH) | 58x128x135 |
| power(kw) | 4KW/3.2kW |
| performance index | Temperature range | RT+10℃-70℃ |
| Humidity range | ≥95%R.H |
| Distance between tubes | 35mm |
| Distance between sample and tube | 50mm |
| ultraviolet wavelength | 290nm-400nm UV-A,UV-B,UV-C |
| Lamp wattage | 40W |
| safety protection | Leakage, short circuit, over temperature, water shortage, over current protection/controller power failure memory |
Our company:
Packing/Shipping:
Our Services
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
|
|
