Specifications:

Dust proof test machine

1. We are manufacturer, offer reasonable price for you.

2. Customization of non-standard models are available.

3. Major parts adopt imported brands.

Features:
• Temperature Range: environmental temperature + 5~50℃ (Adjustable)
• Humidity Range: 45%~75% (Adjustable)
• Metal net standard nominal line diameter: 50μm• Airflow velocity in the chamber: 1.5m/s (adjustable range 0~4.99m/s)
• Environmental air pressure: 85Kpa~106Kpa
• Test dust: dry talcum powder, portland cement, smoke ash and etc.
• Line spacing between the standard: 32μm, 75μm and 250μm (There are three Metal nets)
• Selecting dust concentration control instrument: get sample through the optical principle, show the dust concentration and automatic control powder quantity that entering into the Cabinet according to the concentration of the set: (needed cleaning compressed air source configuration, require the pressure: 1~3 kg/cm3)
• Power supply: 380V 3phases 50 Hz/60Hz
Besides dust proof test machine, our business range also covers:
Thermal shock chamber, Temperature humidity chamber, Ramp rate temperature chamber, Walk-in climatic chamber, Solar radiation test chamber, Ozone test chamber, Salt spray chamber, Industrial hot air oven, Dustfree hot oven, Temperature humidity control cabinet, Rain spray test chamber, Automatic glue dispensing machine, Climate and vibration combined chamber, Burn-in aging test room, Steam aging test chamber, Ventilation aging chamber, Vibration tester, Drop tester, Tensile tester, etc.

Grande Electronics is one of the largest CE certified dust test chamber manufacturers and suppliers in China and also known as one of the famous chamber brands. Our discount product is mainly featured by good performance and flexibility and low price. Welcome to order the customized and cheap chamber made in China with our factory.

Working principle of chamber:
Centrifugal fan is the main source of dust movement, the high-speed operation of the fan so that dust into the fan due to the centrifugal force of the role of fan blades into the dust pipe dust. The wind speed of the pipeline is usually more than 7.5m / s (too low wind speed will make the dust precipitate in the pipeline will cause the test tube can not work). The dust line was sprayed from above into the test chamber and passed through the sample at a rate of> 2 m / s. Sand and dust chamber As the lower part of the working box for the funnel, it can precipitate down the dust into the lower part of the 72 × 50um filter. Through the vibrating motor vibration, less than the diameter of the filter hole in the dust and centrifugal fan sucked so back and forth.

Application: Mainly for shell protection, auto parts (light, instrument, steering system, door locks, etc.), machinery, electrical, electronic, electrochemical and mechanical and electrical equipment , etc.

model:

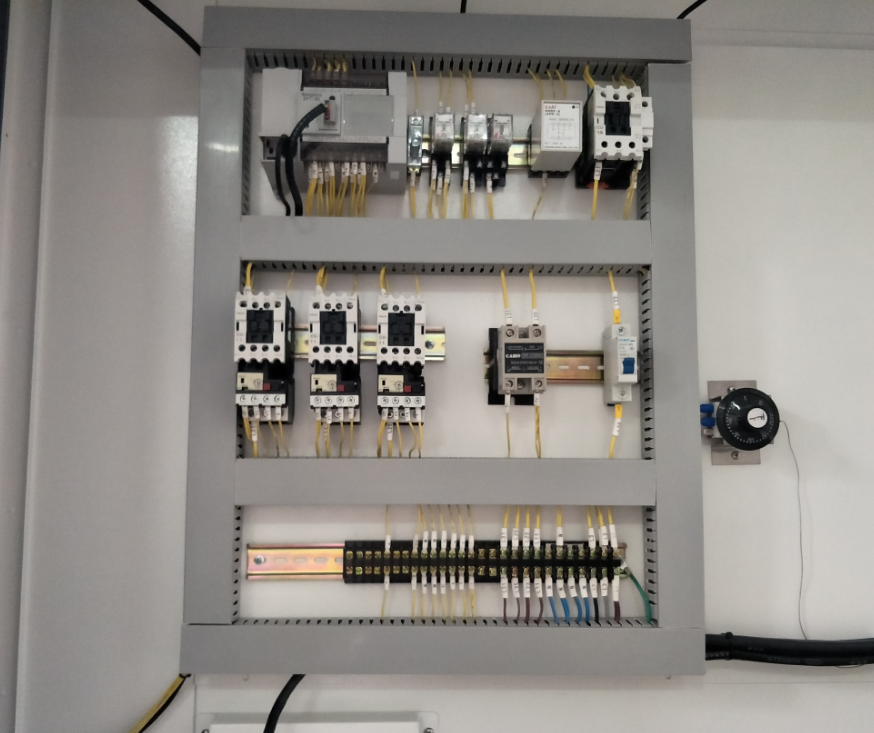

Electronic and Control systems:
1. The main controller LCD touch screen, can do programmable test
2. PLC complex man-machine interface control, contrived moving time, rest time and power-on time setting.
3. multiple sets of test procedures can be planned in the interface, and each group can be arbitrarily set the desired action, easy to operate.
4. If a fault occurs in the operation of various signals are written records will be displayed to facilitate maintenance.
5. Touch the setting, digital direct display, all the conditions fully automatic locking by a microcomputer.
6. imported electronic temperature and humidity sensor, not need to cleanup.

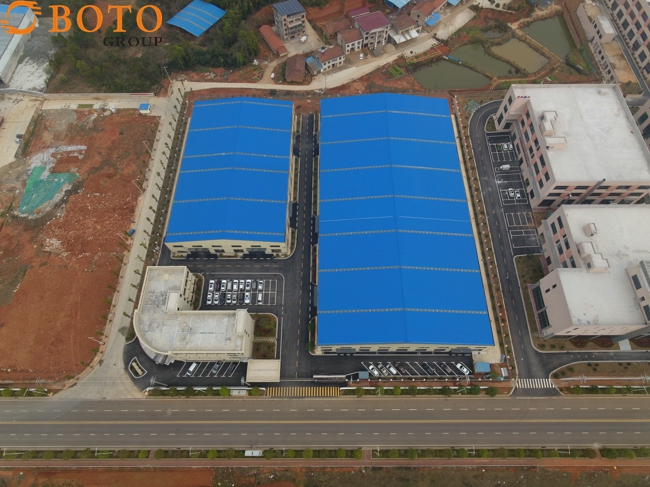

Our company:

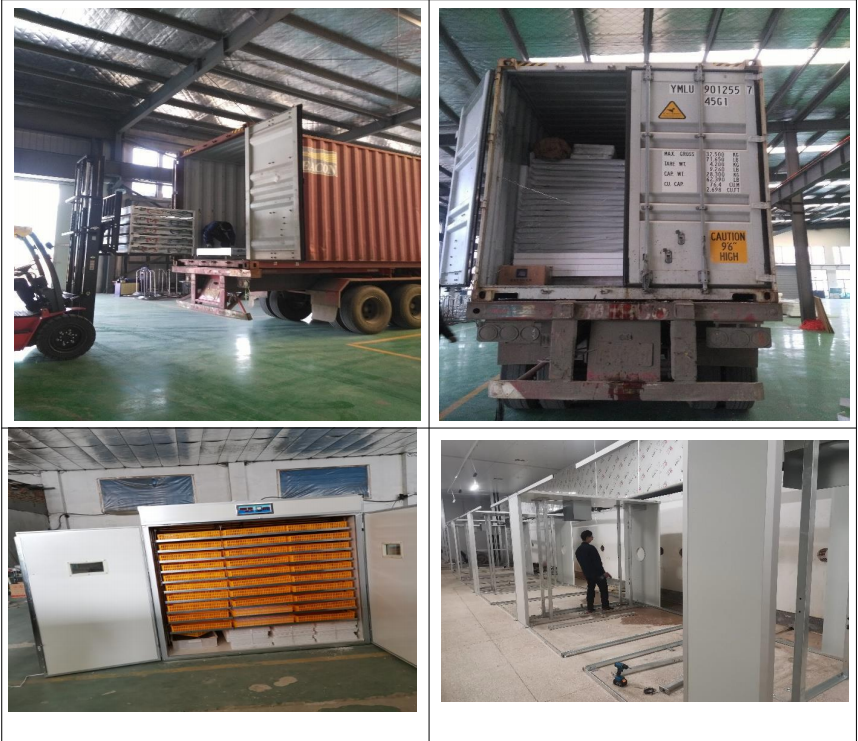

shipping and packing:

IP5X Lab Drying Climatic Chamber

IP6X Sand And Dust Test Box

Customizable Climatic Chamber
